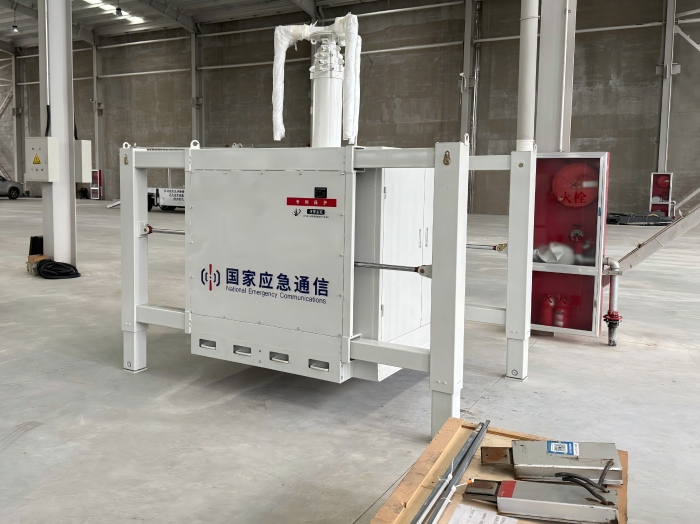

Deployed in 30 Minutes: Rapid Deployment Technology of the Integrated Communication Cabin

In the critical moments following a disaster or at the onset of a major event, communication is not just a utility—it's a lifeline. Traditional methods of establishing emergency networks can take hours or even days, a luxury that simply doesn't exist when every second counts. This is where the paradigm shifts. The modern Integrated Communication Cabin redefines rapid response with one uncompromising benchmark: full operational readiness in just 30 minutes.

This blog delves into the engineered core of this capability, revealing how the synergy of self-loading/unloading mechanisms, a powerful integrated hydraulic system, and purpose-built design transforms deployment from a complex logistical operation into a swift, reliable process.

The Imperative for Speed: From Hours to Minutes

Consider the timeline of a crisis. The first hour—the "golden hour"—is often decisive for saving lives and coordinating effective response. Conventional setups involving multiple trucks, cranes for antenna mast assembly, manual grounding, and on-site equipment configuration are inherently slow. They are hampered by dependency on external machinery, complex manual labor, and sequential tasks that are vulnerable to delay.

The 30-minute deployment target of the Integrated Communication Shelter is not an arbitrary goal; it is a direct response to this operational reality. It ensures that a fully functional communication hub—complete with mast, core network equipment, power, and environmental control—is online before many traditional teams have finished unloading their first truck.

Anatomy of Speed: The Three Pillars of Rapid Deployment

Achieving a 30-minute setup is an engineering feat accomplished through three interconnected technological pillars.

1. The Self-Loading/Unloading Chassis: Eliminating Crane Dependency

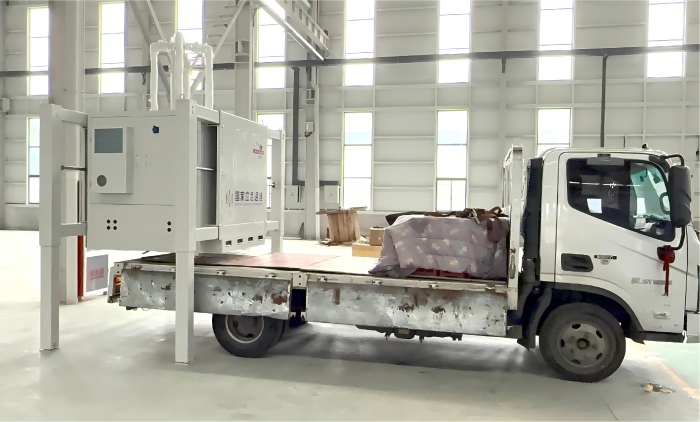

The first major time-saver happens before the unit even leaves the depot and upon arrival at the site. The shelter is integrated with a self-loading and unloading trailer system.

1. How it Works: Using its own onboard power and hydraulic system, the shelter can be autonomously loaded onto or off a standard flatbed transport truck. This eliminates the wait time and logistical complexity of scheduling and operating a separate mobile crane at both the origin and destination points.

2. Impact on Timeline: This capability alone can save 1-2 hours typically lost to crane setup and operation, ensuring the unit begins its on-site deployment sequence the moment it arrives.

2. The Integrated Hydraulic Power System: The Muscle for Automation

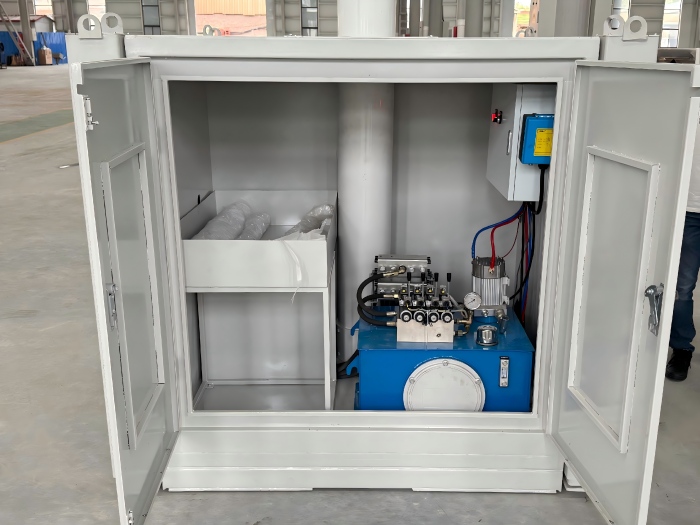

This is the heart of the rapid deployment mechanism. A robust, high-pressure hydraulic system powers all major unfolding and lifting motions, replacing slow, error-prone, and physically demanding manual labor.

1. Key Functions Powered by Hydraulics:

   1. Stabilizer Deployment: Heavy-duty hydraulic outriggers (stabilizer legs) extend from the chassis to firmly and level the unit on uneven ground within minutes.

   2. Shelter Expansion: For designs with expandable sides or compartments, hydraulic rams smoothly extend the living and working space to its full operational width.

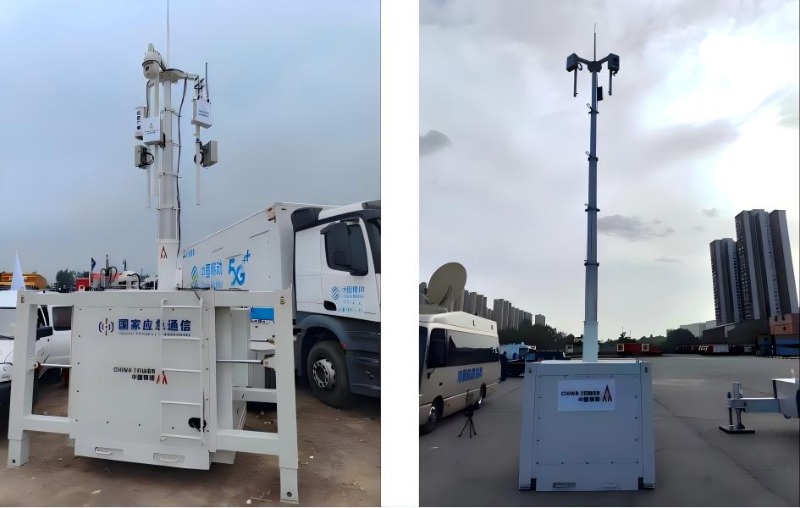

   3. Antenna Mast Erection: Most critically, the telescopic antenna mast is raised to its full operational height (typically 8-15 meters) not by hand-cranking or winches, but by a smooth, powerful, and controlled hydraulic lift. This is the single most time-consuming task rendered effortless.

2. Control & Safety: The system is managed via a simple, intuitive control panel, often with both wireless remote and manual backup controls, allowing a single operator to safely execute the entire sequence.

3. Pre-Integrated, Plug-and-Play Design
Speed is not only about mechanics but also about eliminating configuration. The shelter arrives pre-equipped and pre-tested.

1. Pre-Installed Equipment: The core telecommunication gear (baseband, RF units, switching power supply, backup batteries) is permanently mounted, wired, and tested in the factory.

2. Pre-Run Cabling: All internal power and data cables are routed through dedicated channels and connected. Upon deployment, operators essentially "power on" a finished system rather than "build" one.

3. Rapid Interconnection: External interfaces for power grid connection, generator hookup, and external antenna feeds are standardized, clearly marked, and easily accessible, minimizing final setup steps.

Proven in the Field: From Theory to Reality

This technology is not merely theoretical. It has been proven under real-world pressure:

• At the Huaqing Palace scenic area in Xi'an, an emergency shelter achieved the "10-minute rapid arrival and placement, 2-hour base station activation" target, dramatically enhancing network capacity during a tourist surge by leveraging this rapid-deploy technology.

• At a longstanding difficult "bone site" at the Vienna International Hotel in Nanjing, the ability to pre-configure the shelter off-site and then deploy it within an hour on-site resolved years of coverage deadlock, minimizing on-site disruption and community objections.

Conclusion: Redefining the Standard for Emergency Response

The 30-minute deployment capability of the  Integrated Communication Cabin represents a fundamental shift in what is possible for emergency response and event planning. By mastering self-loading/unloading, harnessing integrated hydraulic power, and committing to a pre-integrated design, this technology turns time from a scarce enemy into a managed resource.

For agencies and organizations where a minute's delay can have significant consequences, this isn't just an improved product—it's a new operational standard. It ensures that when disaster strikes or a crowd gathers, the most critical tool for coordination and safety—reliable communication—is the first thing to arrive, not the last.
